How does a pressure washer pump works
To achieve optimal results during your cleaning tasks, it’s crucial to grasp the mechanics behind the internal mechanism responsible for generating high-pressure streams. This component operates by converting rotational energy from a motor into hydraulic energy, effectively elevating water pressure to levels that can tackle stubborn dirt and grime.
When engaging this device, water enters through an intake valve, where it is then directed into a chamber. Here, a series of pistons or diaphragms are activated, pushing the water through a narrow outlet. This process significantly amplifies the pressure, allowing for powerful jets that can remove even the most entrenched contaminants from surfaces.
Regular maintenance of this device ensures longevity and peak performance. Check for any signs of wear in the seals and valves, and ensure that the inlet filter is clean to prevent debris from obstructing flow. Understanding these elements will enhance your cleaning efficiency and prolong the life of your equipment.
Understanding the Mechanism of a High-Pressure Cleaning Device
The key component responsible for generating the necessary force is the motor-driven assembly. This unit comprises a series of pistons that draw in water through an inlet and compress it, increasing its velocity significantly. The fluid is then expelled through a nozzle, resulting in a focused jet capable of removing dirt and grime from various surfaces.
Piston Functionality
Pistons operate within a sealed chamber, creating a vacuum that pulls water in. As the motor turns, these pistons move rapidly back and forth, pushing the water out with considerable pressure. The design of the pistons is crucial; materials must withstand high pressures and resist wear over time.
Pressure Regulation
Incorporating a pressure relief valve is vital for maintaining safe operation. This device automatically releases excess pressure, preventing potential damage to the system. Additionally, adjustable nozzles allow users to modify the spray pattern and intensity, enhancing versatility for different tasks.
Understanding the Components of a Pressure Washer Pump
The functionality of a high-pressure cleaning device is rooted in its key elements, each playing a significant role in delivering power and efficiency. Here’s a breakdown of these crucial components:
- Motor: Provides the necessary energy, typically electric or gasoline-powered, to drive the system. The motor’s horsepower directly influences the unit’s performance.
- Crankshaft: Converts the motor’s rotational energy into linear motion, essential for the operation of the pistons within the assembly.
- Pistons: These components are responsible for creating high pressure by forcing water through the system. Their size and material can affect durability and efficiency.
- Cylinder Head: Houses the pistons and includes valves that control water flow. Ensuring a tight seal here is critical to maintain pressure levels.
- Valves: Include inlet and outlet types. The inlet valve allows water to enter, while the outlet valve releases pressurized water to the nozzle. Their proper functioning is vital for maintaining consistent pressure.
- Unloader Valve: Regulates pressure by diverting water flow when the trigger is not engaged, preventing damage to the system.
- Housing: Encloses and protects inner components from external elements, contributing to the overall durability of the machine.
Understanding these parts helps in troubleshooting and maintenance, ensuring longevity and optimal performance in cleaning tasks. Regular checks on these elements can prevent common issues and extend the lifespan of the equipment.
Water Intake Mechanism in a Pressure Cleaner Pump
The water intake process involves several key components that ensure a steady flow of liquid into the machine. The inlet valve acts as the primary gateway, allowing water to enter from the source. This valve remains closed during the machine’s idle state and opens when the motor is activated. Proper functioning of the inlet valve is critical; any malfunction can lead to a loss of pressure and efficiency.
Components Involved in Water Intake
The main components that facilitate water intake include:
| Component | Function |
|---|---|
| Inlet Valve | Controls water flow into the pump. |
| Water Filter | Prevents debris from entering the system. |
| Piping | Conveys water from the source to the pump. |
| Check Valve | Maintains water flow direction and prevents backflow. |
Before starting the machine, ensure that the water source is clean and the filter is free of obstructions. This preparation helps maintain optimal performance and prolongs the lifespan of the components. Regularly inspect the piping for leaks or kinks, as these can significantly affect water intake and overall efficiency.
The Role of the Motor in Pump Operation
The motor serves as the driving force behind the entire mechanism, converting electrical energy into mechanical energy. This transformation initiates the action required to propel water through the system. A reliable motor not only ensures consistent performance but also impacts the pressure generated during operation.
Types of Motors
Electric motors are the most common, offering varying power ratings to suit different applications. Brushless motors provide enhanced efficiency and longevity, reducing maintenance needs. Gasoline engines, on the other hand, offer mobility and are often preferred for heavy-duty tasks, delivering high power output in portable units.
Power Rating and Performance
Understanding the power rating is essential for matching the motor to the intended application. A higher wattage typically results in increased pressure, allowing for more effective cleaning. However, it’s crucial to balance power with the desired flow rate to avoid excessive water consumption and wear on components.
How Pressure is Generated Within the Pump
The generation of force within the unit relies primarily on the mechanics of movement and fluid dynamics. At its core, the device uses a combination of mechanical action and fluid flow to achieve high levels of intensity.
Here’s a breakdown of the process:
- Cycling Mechanism: The reciprocating or rotating components create a vacuum that draws in water. As these components move, they compress the water within a confined space, rapidly increasing its intensity.
- Fluid Dynamics: Upon intake, water is directed towards a chamber where it’s forced through a narrower exit. This constriction amplifies the fluid’s speed, resulting in a significant increase in force.
- Check Valves: These components prevent backflow, ensuring that the water is consistently directed in one direction, maintaining the necessary flow rate and force.
- Bypass Mechanism: During operation, if the outlet is obstructed, this system redirects fluid back to the inlet. This not only protects the unit from damage but also maintains a stable environment for pressure generation.
Understanding these mechanisms allows for better maintenance and optimization of the equipment, ensuring it operates at peak performance.
Common Types of Pressure Washer Pumps Explained
Understanding the various types of pumps can significantly impact your cleaning tasks. The main categories include axial cam, triplex, and diaphragm systems. Each type offers unique features suited for different applications.
Axial Cam Pumps
These systems are typically found in residential units. Their design features a simple mechanism, making them lightweight and affordable. They operate efficiently at lower pressures, generally ranging from 1300 to 2000 PSI. This makes them ideal for light-duty jobs such as washing cars or cleaning patios.
Triplex Pumps

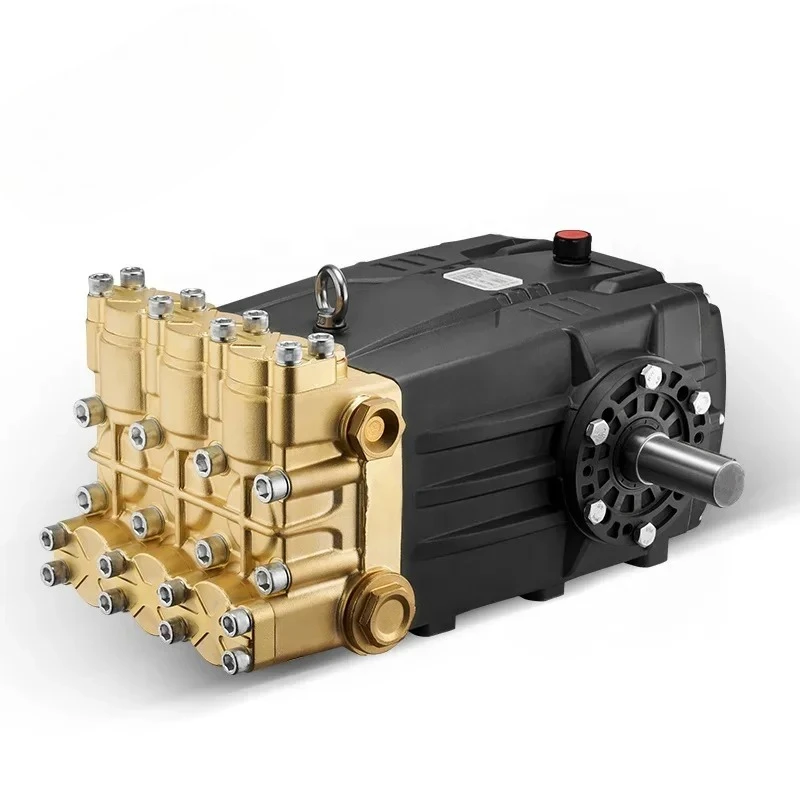

For more demanding tasks, triplex pumps are the preferred choice. They consist of three pistons and can generate higher pressures, typically between 2500 and 4000 PSI. This type is commonly used in commercial-grade machines, providing durability and consistent performance. The ability to handle heavy-duty work, like stripping paint or deep cleaning surfaces, makes them invaluable for professional users.
Diaphragm pumps are less common but worth mentioning. They utilize a flexible diaphragm to create pressure and are often used for chemicals or detergents. Their resistance to corrosion makes them suitable for specialized applications, although they may not achieve the same pressure levels as the previous types.
Choosing the right pump type depends on your specific cleaning needs. For general household tasks, an axial cam system suffices, while a triplex option is better for intensive work. Consider the intended use to maximize efficiency and effectiveness in your cleaning endeavors.
Maintenance Tips for Pressure Washer Pumps
Regularly checking and replacing the oil in the unit is crucial. Use the recommended type of oil specified by the manufacturer to ensure optimal performance.
Inspect the intake filter for debris and clean or replace it as necessary. A clean filter prevents blockages and helps maintain proper water flow.
Always run the machine with clean water. Contaminants can cause internal damage. Flushing the system with fresh water after use helps remove impurities.
Inspect hoses for leaks or wear. Replace any damaged hoses immediately to prevent pressure loss and maintain performance.
Keep the exterior and components clean. Dirt buildup can lead to overheating and mechanical failures. Wipe down surfaces and clear away any debris.
Seasonal Care
During off-seasons, store the equipment in a dry place. Draining any remaining water can prevent freezing and internal damage.
Consider using a pump protector during storage. This prevents rust and keeps seals lubricated, extending the lifespan of the components.
Professional Servicing
If performance issues arise, consult a professional for servicing. They can identify and resolve problems that may not be apparent during routine checks.
Identifying and Fixing Common Pump Problems
For a malfunctioning unit, first check for leaks in hoses or connections. A simple tightening of fittings can often resolve minor leaks. If leakage persists, consider replacing worn seals or gaskets, as they can degrade over time.
If the unit fails to build up sufficient pressure, inspect the inlet filter for clogs. Cleaning or replacing the filter can restore water flow and improve performance. Additionally, examine the unloader valve; if it’s stuck or malfunctioning, it may prevent pressure buildup. A thorough cleaning or replacement of this valve can fix the issue.
Unusual noises during operation often indicate internal wear. Listen for grinding or rattling sounds, which could suggest damaged bearings or a misaligned pump. In such cases, disassembling the unit for inspection is essential. Replace any damaged components to ensure smooth operation.
Inconsistent flow is another common issue. This can stem from air trapped within the system. To purge air, run the unit without a nozzle attached until a steady stream of water flows. If problems continue, check for blockages in the nozzle or hose, as these can restrict flow.
If the motor fails to start, examine the power supply. Ensure that the outlet is functioning and that the electrical connections are secure. A faulty motor may require professional repair or replacement, depending on the extent of the damage.
Regular maintenance is key to preventing these issues. I recommend flushing the unit with clean water after each use to remove debris and prevent buildup. Periodic inspection of seals and components will also help catch potential problems early.
