A Simple Reference Guide for Effective Cleaning use a Pressure Nozzle Chart

pressure washer has different parts and each of these parts of the cleaning device has a vital role to play in the performance of your chosen machine. One of these parts is the pressure washer nozzle. This part is responsible for the whole functionality of your cleaning device. In addition, pressure washer nozzles have small openings or what others called an orifice which has different sizes which determine the desired pressure at a special flow. In case you are not aware of this fact, pressure washer nozzles have a chart. A pressure washer nozzle chart is a chart containing the color of the pressure washer nozzle which are represented as follows.

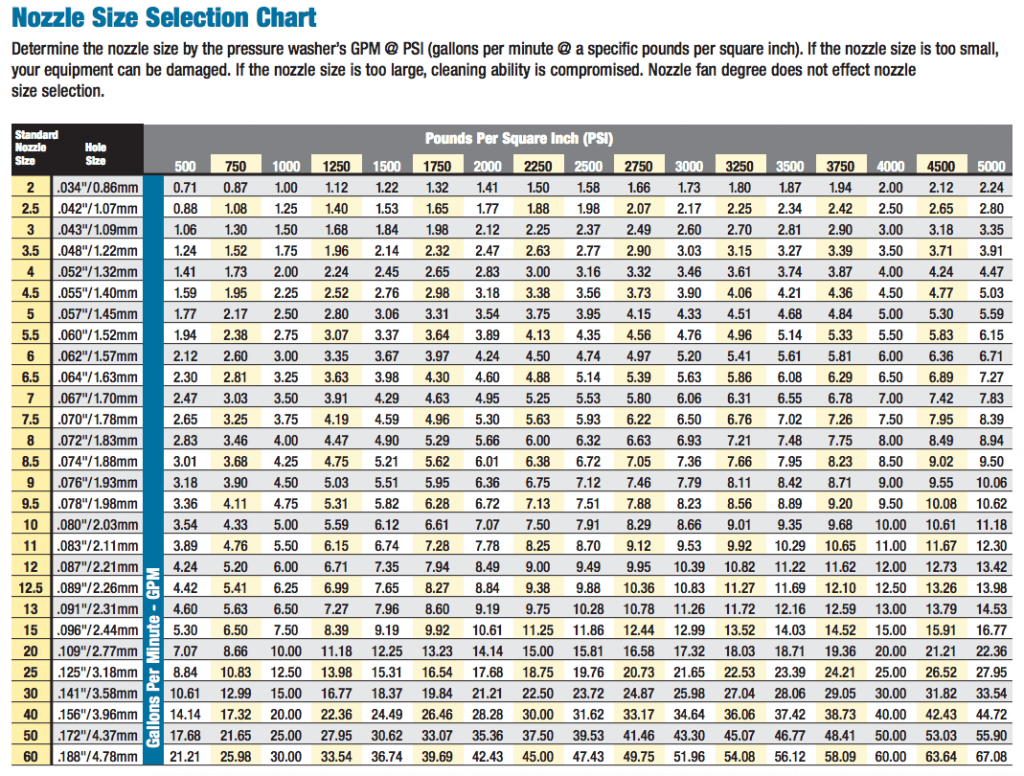

Pressure Washer Nozzle Chart

Pressure Nozzle Chart
Pressure Nozzle Chart

The chart below is an example of a pressure washer nozzle chart simply guides pressure washer users on what particular color of spray nozzles is best for their chosen pressure washer unit. The color codes that are stated in a pressure washer nozzle chart indicates the degree or fan spray that are produced by the nozzles of a high pressure washer. Please read carefully this pressure washer nozzle chart to know more about the nozzles of your pressure washer.

Pressure Washer Nozzle Chart
Pressure Washer Nozzle Chart

1. Red – The tip color of a pressure washer that means zero degrees. This color of the nozzle produces a pencil point pattern. Meaning, that no fan is created. This tip color is not used hard cleaning because it does not in any way deliver a cleaning impact, as it is only limited to smallest areas. However, according to a pressure washer nozzle chart, the red color of the nozzle’s tip is perfect for cleaning under the deck of a lawnmower.

2. Yellow – This color of the nozzle tip has a 15-degree fan pattern They are referred to as chiseling tips. If you hold this nozzle tip at a 45 degrees angle tip, this can used as a scraper in removing peeling paint or mildew according to a pressure washer nozzle chart.

3. Green – A color of the nozzle tip that has a 25-degree fan pattern. These are the tip colors of the nozzles which are effective in breaking the bond between grime and a substrate.

4. White – This color of the nozzles’ tip has a 40-degree pattern. This color of the nozzle tip is best suited for delicate washing purpose. In addition, these are the tips used for rinsing or glass washing of vehicles.

A pressure washer nozzle chart guides every pressure washer machine users in choosing the right nozzle color based on the pressure washer nozzle chart to make the most out of your pressure washer.
